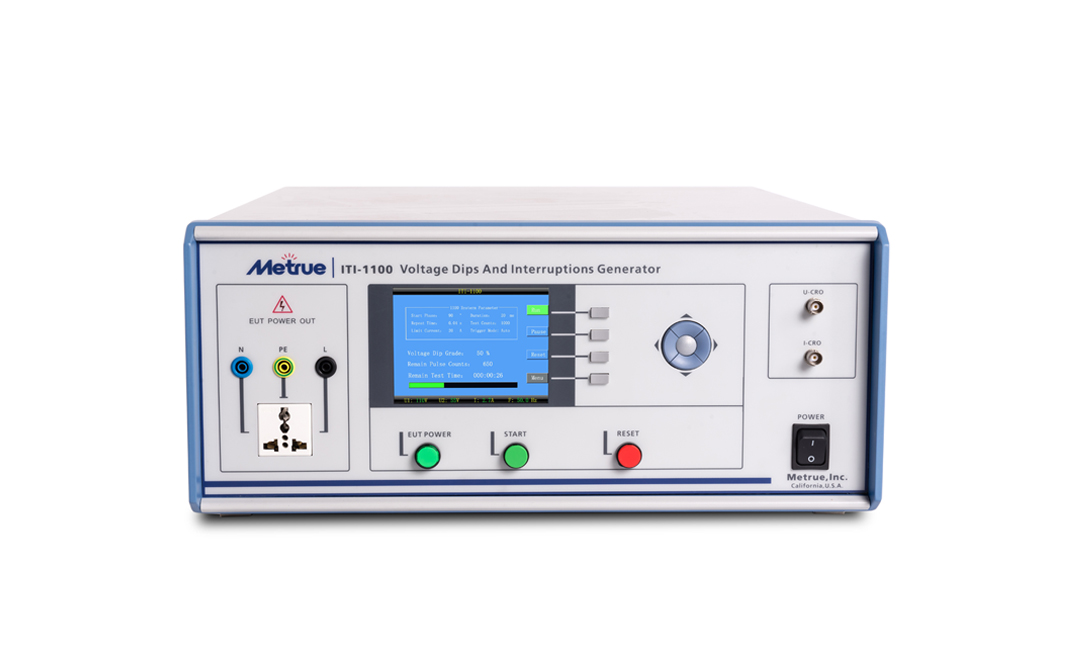

ITI-1100 Voltage Dips And Interruptions Generator
The malfunction or sudden large variation of load in a network or power supply would cause voltage dips, short interruptions, or voltage variation. ITI-1100 Voltage Dips and Interruption Generator is designed for voltage dip and short interruption immunity testing. It is an ideal disturbance source for the EMC testing.

 Features

    High Adaptability: Abundant voltage test levels
    Flexibility: Adjustable starting phase for various types of products
    Equipment Protection: Built-in over-current and over-voltage protective circuits
    PC Communication: Equipped with an RS232 communication interface to realize remote control
    Stand Alone: Adopts a 5 inch LCD to make the operation simple and convenient without need for other equipment

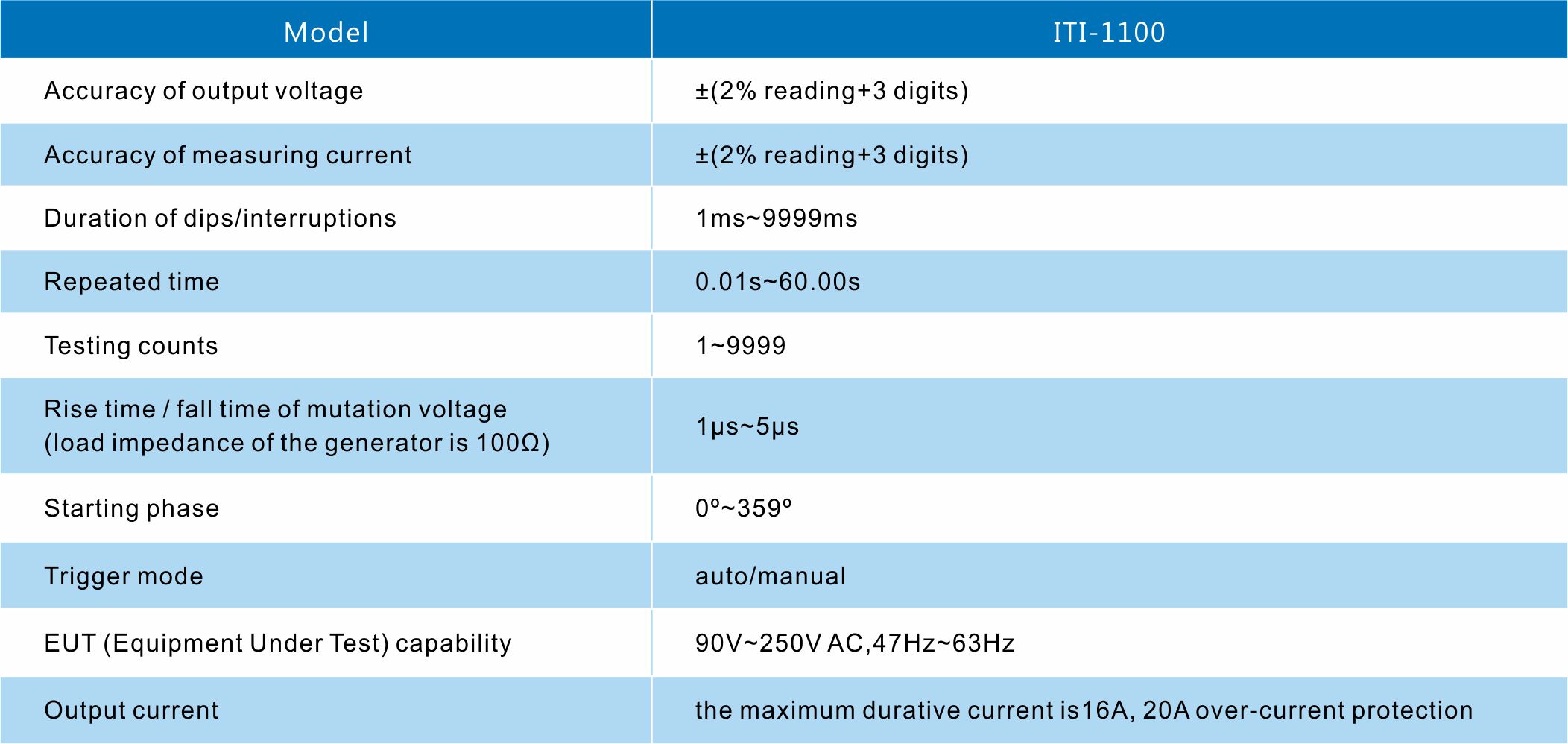

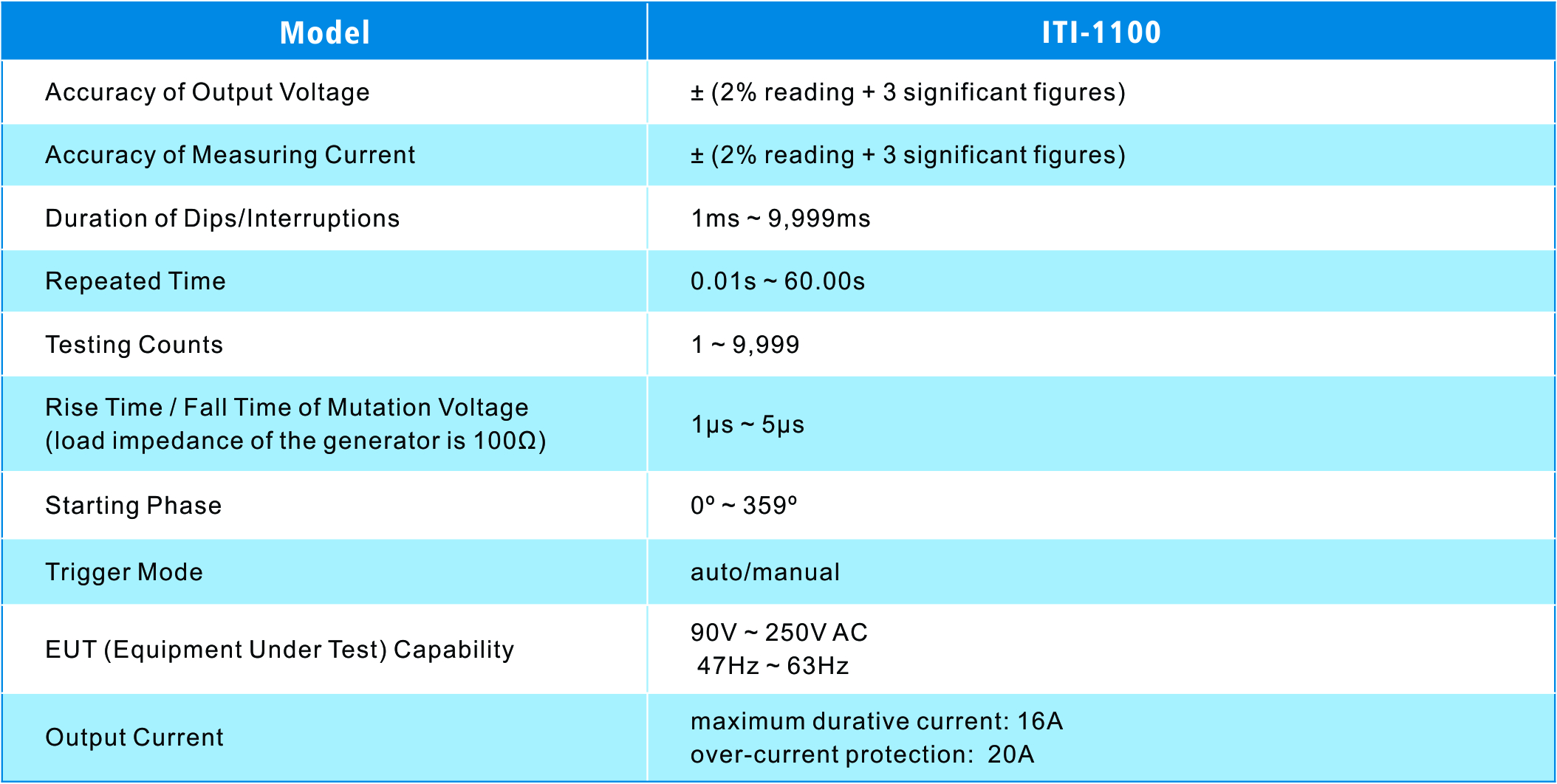

Specifications


Standard Compliance
    EN 61000-4-11: Testing and measurement techniques for voltage dips, short interruptions, and voltage variations
    EN 61000-4-34: Testing and measurement techniques for voltage dips, short interruptions, and voltage variations for equipment with input current of more than 16A per phase
    EN 61000-6-1: Generic standards for electrical immunity for residential, commercial, and light-industrial environments
    EN 610001-2: Generic standards for electrical immunity for industrial environments
    IEC 6060 1 1-1-2: Collateral standard for general requirements for basic safety and essential performance and electromagnetic compatibility
    IEC 60601 1-4-29: Particular requirements for basic safety and essential performance of peritoneal dialysis equipment
