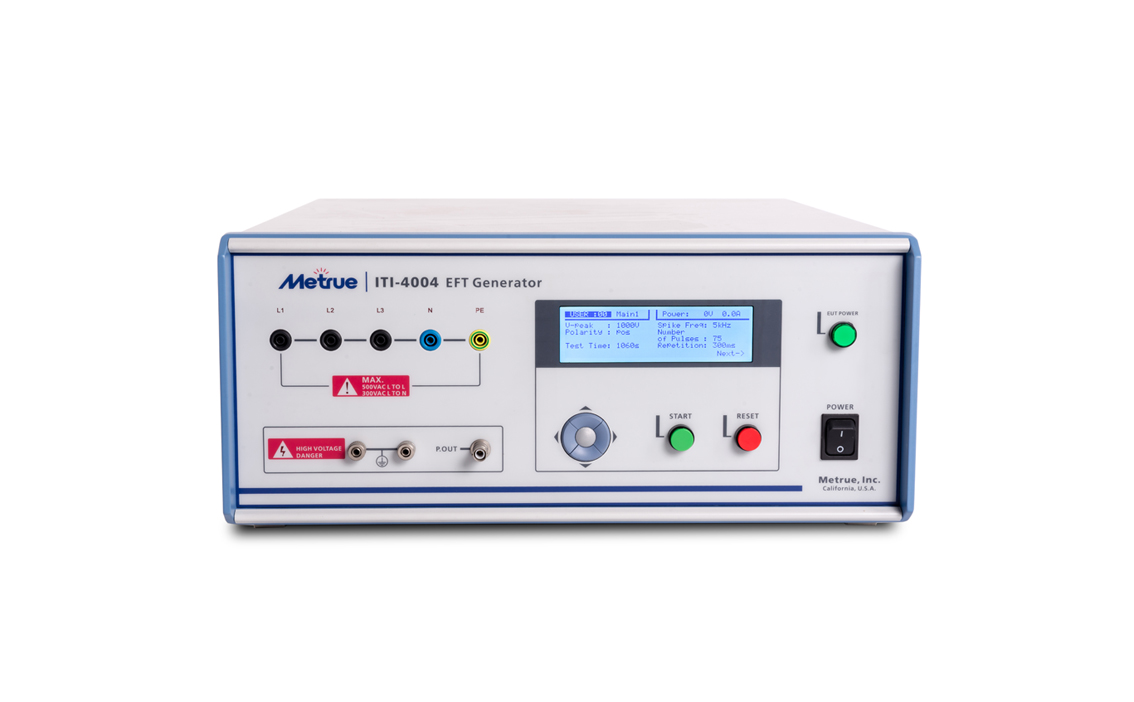

ITI-4004 Electrical Intelligent Transient Generator
ITI-4004 Electrical Intelligent Transient (EFT) Generator is specially designed according to the characteristics and requirements of EFT immunity testing, which simulates the repetitive noise of high frequency caused by switching transients (interruption of inductive loads, relay contact bounce, etc.). The instrument has many advantages, including producing accurate transient waveforms, high pulse repetition rates (the highest frequency is up to 2MHz), stable performance, convenient operation, and RS485 remote control compatibility by PC. It fully conforms to the requirements of IEC61000-4-4 and EN61000-4-4. It is particularly suitable for EFT immunity testing and is the ideal disturbance for EMC testing.

Features

    Extremely High Maximum Frequency: The maximum pulse frequency is 24MHz, which enables the extremely high severity testing
    High Voltage Source: Unique high-voltage source design enables the test voltage of 7kV
    Convenience: Built-in IEC standard test levels
    PC Compatibility: Remote communication and available test software platform

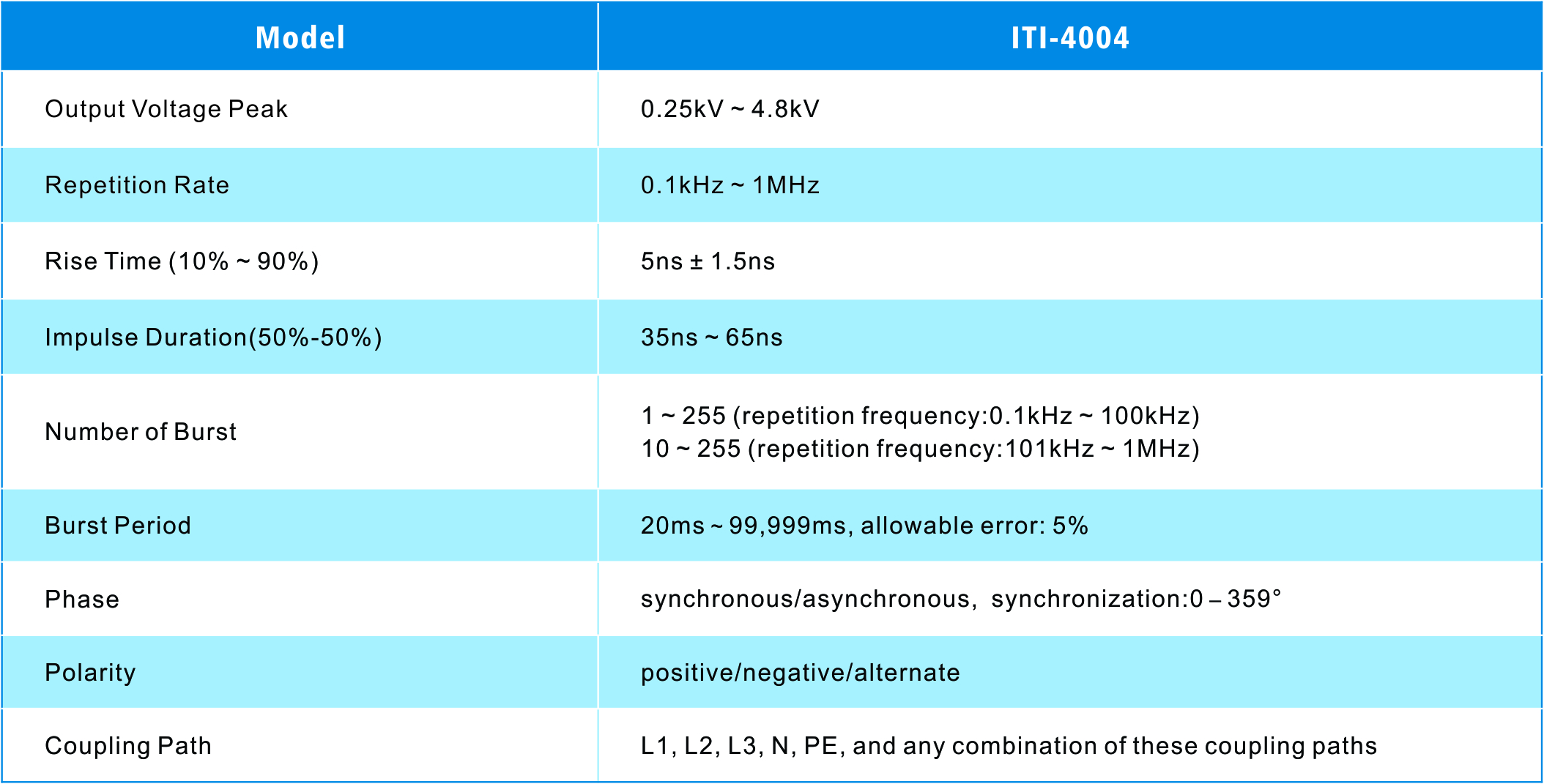

Specifications


Standard Compliance
    CISPR 11: Limits and methods of measurement of radio frequency disturbance characteristics for industrial, scientific, and medical equipment
    CISPR 14: Electromagnetic compatibility requirements for household appliances, electric tools, and similar apparatus
    EN 61000-6: Emission standard for residential, commercial, and light-industrial environments
    IEC 60601-1: General requirements for basic safety and essential performance of medical electrical equipment
    IEC 60947: General requirements for low-voltage switch gear and control gear
    IEC/EN 6100-4-4: Testing and measurement techniques for electrical fast transient/burst immunity testing
    IEC 61326: EMC requirements for electrical equipment for measurement, control, and laboratory use
