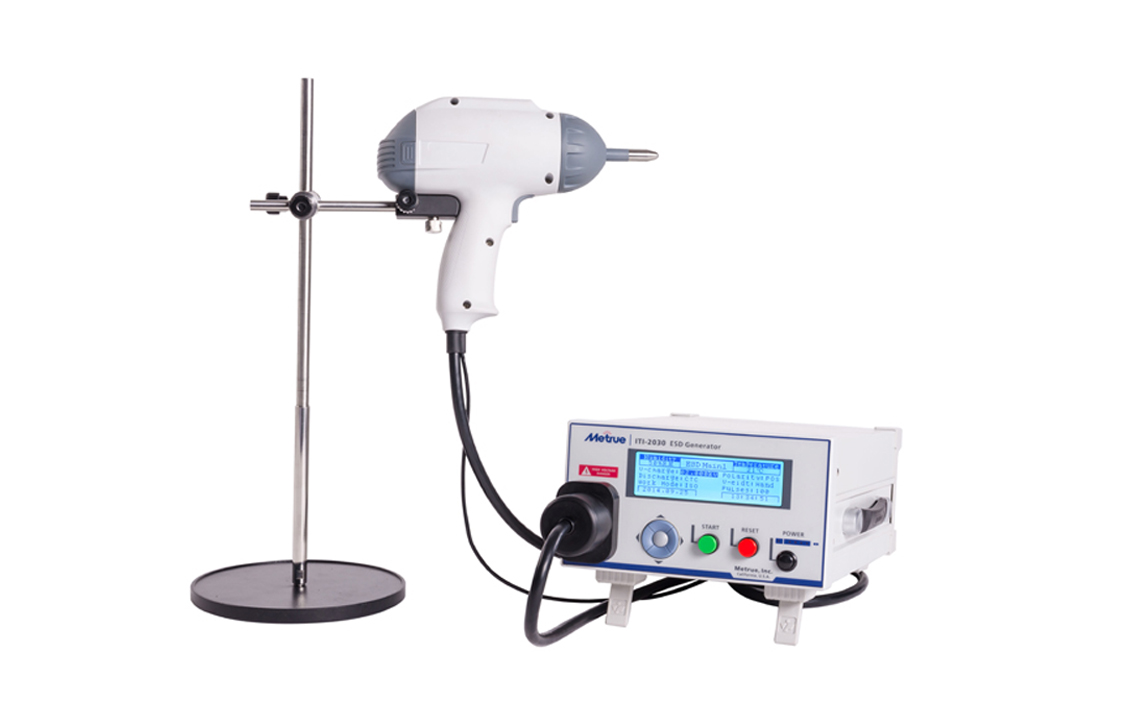

ITI-2030 ESD Generator
ITI-2030 ESD Generator is used for evaluating the electrostatic immunity performance of electrical components and electronic equipment by simulating real electrostatic discharges. The maximum ESD voltage generated is 30 kV and meets the most severe standards’ requirements. Equipped with different modules or discharge guns, ITI-2030 can operate at different ESD test modes. When the static electrons run up to a certain extent, it will quickly discharge to a circumjacent object, which would cause damage to the electronic equipment or semiconductor components. An ESD generator is used for evaluating the electrostatic immunity performance of electrical components and electronic equipments by simulating the real electrostatic discharges.



Features
    High Voltage Source: Unique programmable high-voltage source which generates the test voltage up to 30kV
    Intuitive: The built-in standard test levels and the strengthened gun control function make it more user friendly
    Adaptability: Unique discharge measurement function with adjustable detection sensitivity



 Specifications



Please don’t hesitate to contact us to discuss your specific test requirements.


Standard Compliance
    IEC61000-4-2: Electrostatic discharge immunity testing
    IEC61326: Standard for electrical equipment for measurement, control and laboratory use
    ISO 10605: Road vehicle test method for electrical disturbances from electrostatic discharge
    MIL-STD-883E: Test method for microcircuits
    ANSI/ESO STM5.1-2001: Electrostatic discharge sensitivity testing for the Human Body Model (HBM) component level
    ANSI/ESO STM5.2-1999: Electrostatic discharge sensitivity testing for the machine model component level
    EIA/JESD22-A115-1: Electrostatic discharge sensitivity testing for machine model component level
